Airtech International

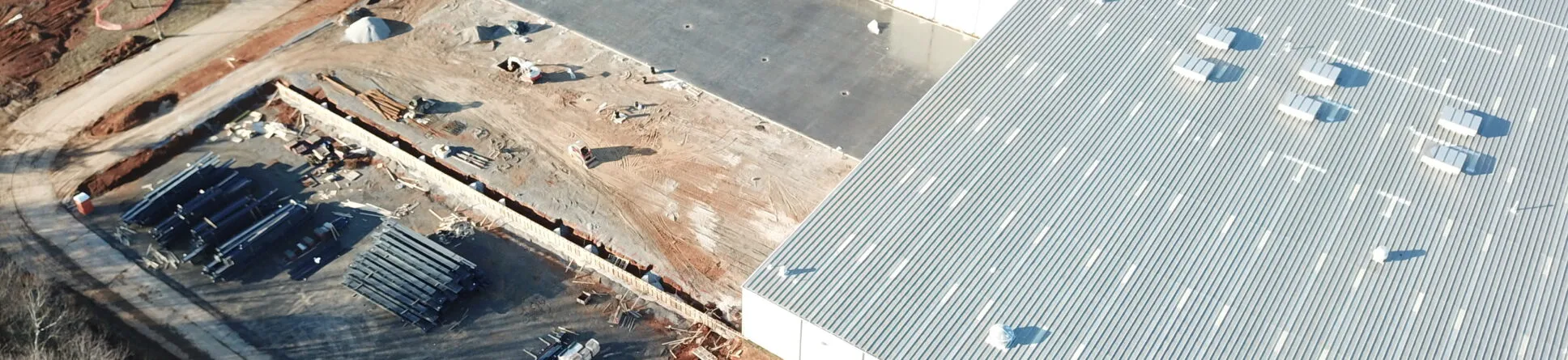

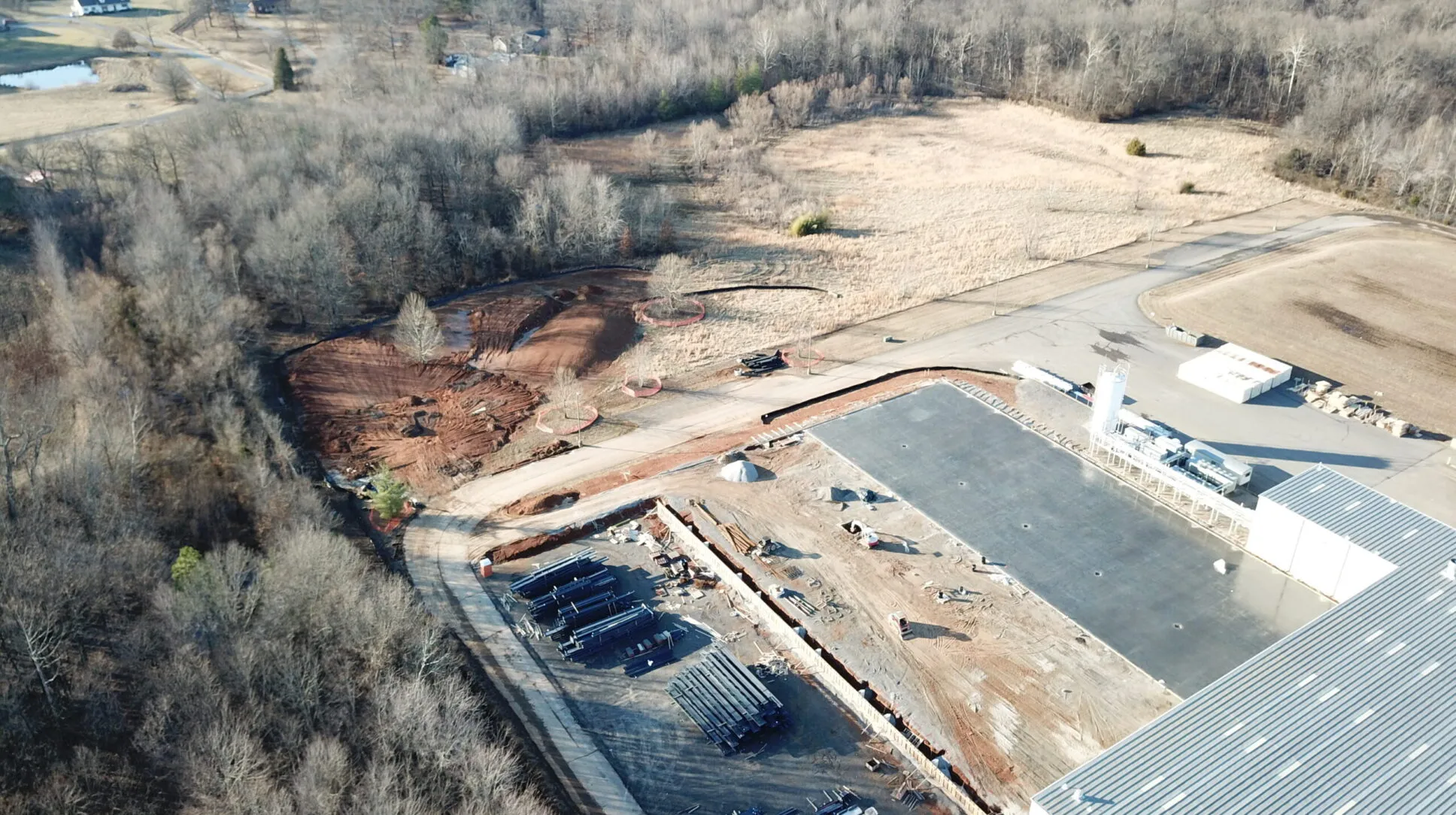

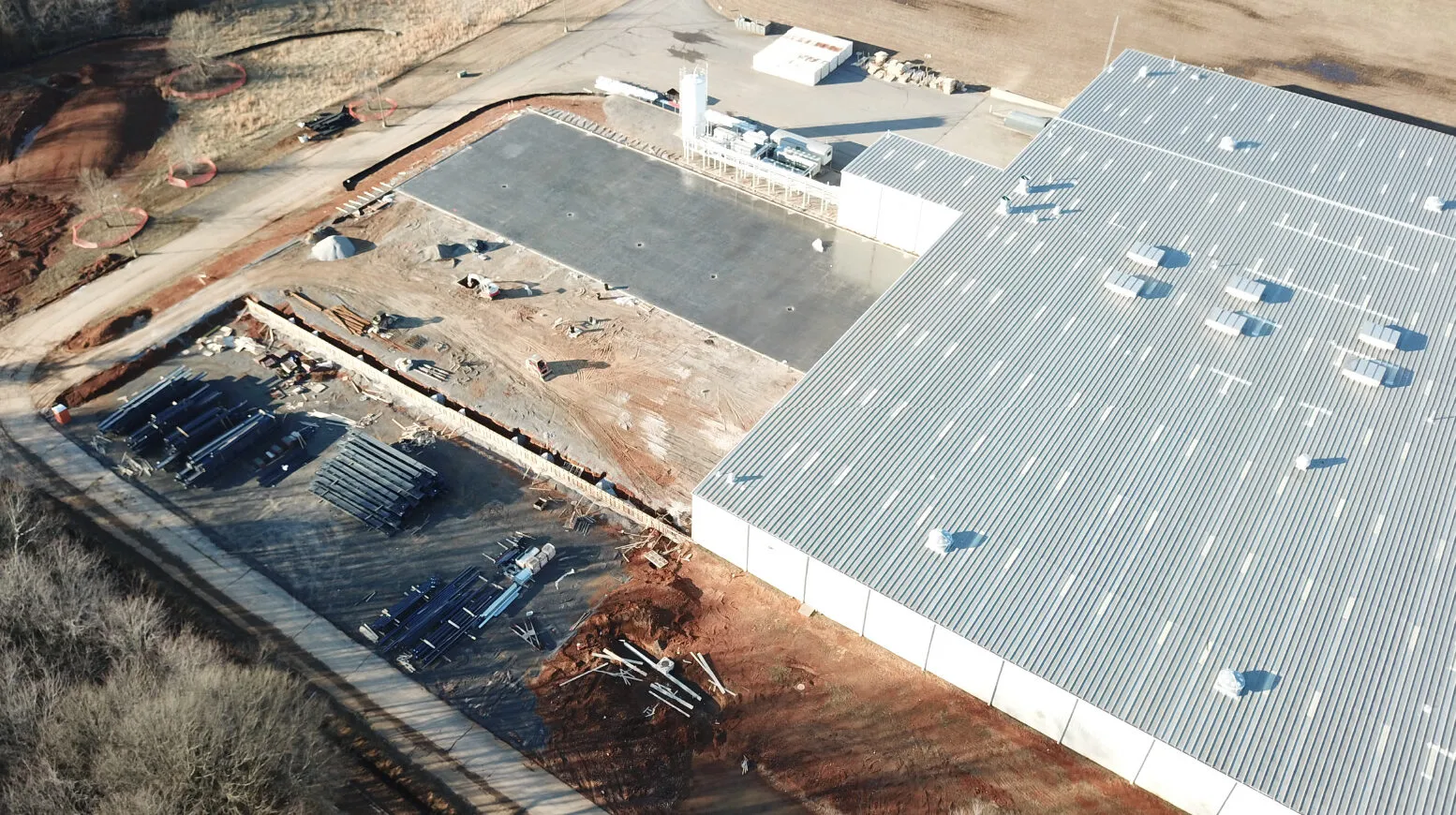

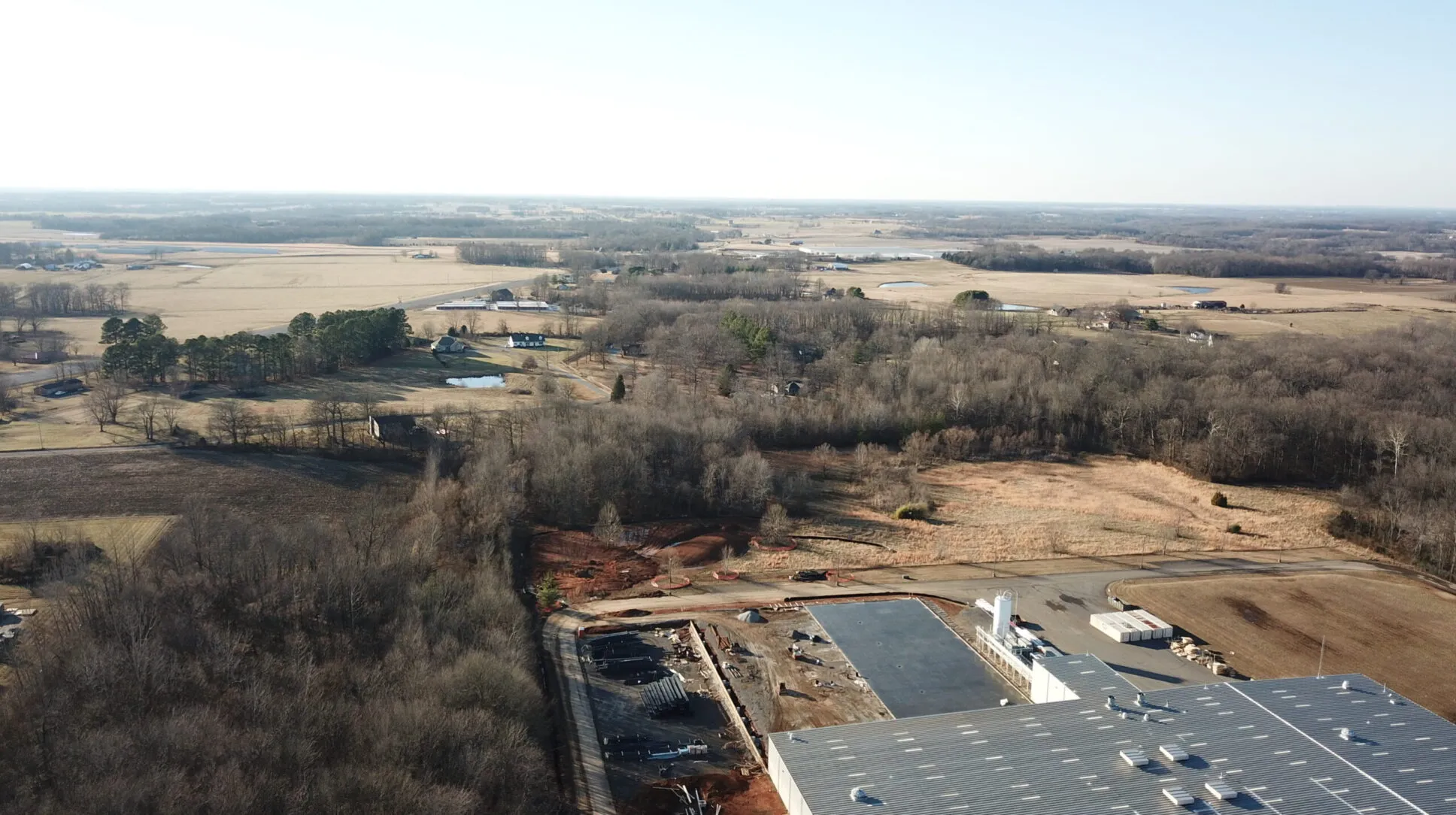

Airtech International desires an additional 50,00 square feet added to the Southwest side of building. The additional design will include the following features:

  • Use is for warehousing shipping and receiving
  • Approximately 200 x 250 (north x west)
  •  35’ clear height
  • No additional restrooms or breakrooms in the addition
  • No air conditioning but consideration given to ventilation and adequate heating to prevent freezing in the winter
  • Connection to the existing building will be via walk doors and rapid open/close rollup doors for the tow motors
  • Construction type would be a metal building with CMU walls for the first 8’
  • Sprinklers for fire suppression
  • Warehouse style lighting
  •  Electrical work will be minimized but room for expansion will be added in the panels
  • A new loading ramp along the south wall of the addition
  •  Utilization of the existing building pad

CSR Engineering provided civil, structural, and design services.

Scope of Work
Site & Building Design

  • Discuss concept information, survey the site boundary and topography and consult with city of Springfield and project stakeholders
  • Develop preliminary site plans in accordance with city of Springfield zoning ordinance and design standard for your review
  • Develop final site plans in accordance with city of Springfield requirement to include survey, site layout, grading, drainage, EPSC, Permanent Storm water infrastructure, Utilities, landscape plan and site details.
  •  Develop and submit the required plans to TDEC for the NPDES construction general permit for construction activities.
  •  Submit proposed final site plans to city of Springfield planning commission as required by zoning ordinance(may allow staff approvals vs planning commission with 50k SF as cutoff)
  •  Floor plans
  •  Elevation
  •  Mechanical Plans
  •  Plumbing plans
  •  Structural plans/details
